Description

Product details

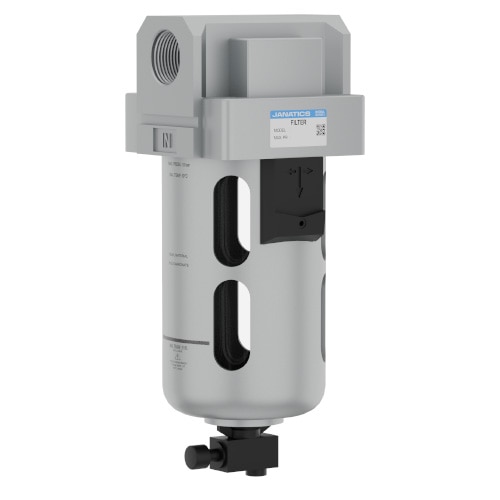

Janatics Air Filter with Manual Drain (F1) Series has a bronze filter element for filtering contaminants from the compressed air. Seperator assembled with Shield for efficient moisture separation. Polycarbonate bowl with steel bowl guard assembled with a manual drain for draining the water collected in the bowl. The Manual Drain has a valve assembly with knob outside the bowl assembly, which can be pushed to drain the water. This manual drain assembly is recommended as standard. Bronze filter element has various micron sizes for filtering the contaminants. Filtration(µm) 1, 5, 25, 40, 50, 100. In these 40(µm) Recommended as Standard. Available Sizes, G1/4, G3/8, G1/2, G3/4, G1. F13 – G1/4 is having Bowl with Threaded bowl guard. F14, F15, F17 - G3/8, G1/2, G3/4, G1 is having bowl with bayonet type bowl guard. A mounting bracket is also recommended for mounting the Filter as per requirement. It can be mounted in line using the IN / OUT ports. The maximum working pressure recommended is 10 bar.
