Description

Product details

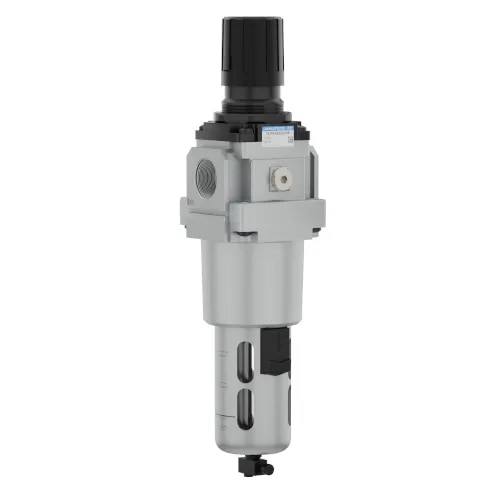

The Janatics Filter Regulator Combination (FRC1…) Series is a combination of filtering and regulating the compressed air, in one unit. Manual Drain fitted for draining the content collected inside the bowl. It uses a separator with a shield for efficient moisture removal, in the compressed air. • Air Filtration: The bronze filter element is mounted to remove contaminants from compressed air. The filter element is available in different micron sizes: 1, 5, 25, 40, 50, and 100 (µm). The 40 (µm) option is recommended as standard. • Pressure Regulation: The required pressure setting is done by lifting the knob and clockwise rotations given to increase the set pressure. The knob rotated Anti clockwise to reduce the pressure. The pressure gauge fitted denotes the outlet pressure. After setting the required pressure the knob is pushed to lock. • Features: Diaphragm operated relieving type. Balanced poppet given for pressure compensation. Venturi provided for flow compensation. • Manual Drain: Polycarbonate bowl with steel bowl guard assembled with a manual drain for draining the water collected in the bowl. The Manual Drain has a valve assembly with knob outside the bowl assembly, which can be pushed to drain the water. This manual drain assembly is recommended as standard. Technical Specifications • Regulating Pressure Range: 0.2–2 bar, 0.2–4 bar, 0.5–7 bar, and 0.5–10 bar. • Available Sizes: • The FRC13 model (G1/4) has Bowl with Threaded bowl guard and without Venturi. • The FRC14, FRC15, and FRC17 models (G3/8, G1/2, G3/4, G1) have a bayonet-type bowl guard with a Venturi. • Mounting: Filter can be mounted in line using the IN / OUT ports. Mounting bracket is recommended to mount the Filter. Panel Mounting also possible with the provided thread. Modular mounting recommended. • Maximum Working Pressure: 10 bar.
