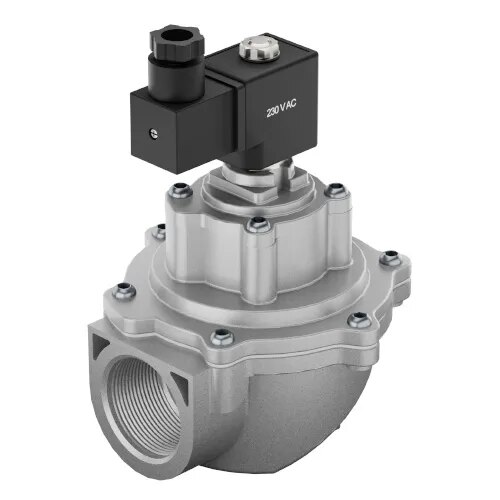

PV-2/2 Single Solenoid Pilot Operated Spring Return
In stock
Description
Janatics pulse valve is a high flow valve with fast opening and closing. Can be used in dirty and dusty environment. It is 2/2-way normal closed pilot solenoid operated valve. The main valve with diaphragm for fast response and the pilot solenoid valve opens the passage rapidly and vents the air chambers.
It is used in dust collection system to clean filters.
Available ports: G3/4, G1, G 1-1/2
Coil width: 32mm
Coil Voltage: AC- 230V, DC- 24V
Working Pressure Range: 0.5 to 8 bar
