Home Products Straight Union

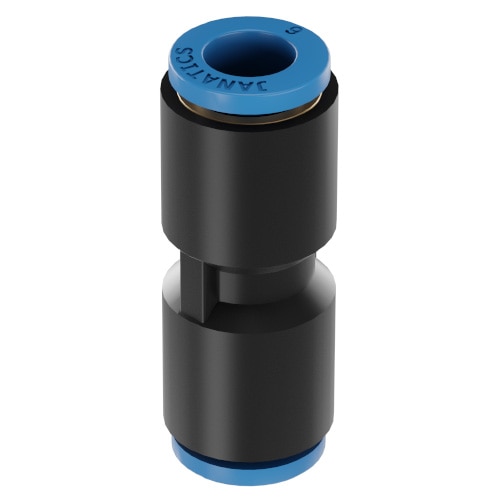

Janatics WP2 Straigh
Janatics WP2 Straigh
COD not available
Union

Straight Union

Share with
Share this on :

Description

Product details

Janatics WP2 Straight Union can be fitted with same size of tube in line on both sides. The Stainless-steel collet holds the tube firmly. When we press the plastic collet cap the tube released by the collet. This is ideal for maintenance. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12, 14, 16 sizes.

Other Products

Related Products

Janatics WP2 Male Connector is having Hexagon shape Metal housing with Male thread in one side and Provision for fitting the tube in other side. In line fitting is possible. Tube can be inserted on one side. The tube can be removed, and the male connector can be removed for service. This is ideal for maintenance. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12, 14, 16 sizes. Available Male Thread M5 in Metric. BSPT (Taper Thread) R1/8, R1/4, R3/8, R1/2, R3/4, R1.
View Details
Male Connector
Janatics Manifolds / Sub base are recommended for mounting individual valve or multiple valves. The directional control valves direct acting or pilot operated are mounted in multiples in the recommended Manifolds for compactness. It is used for optimizing air distribution, reducing piping complexity and Space saving. E Series Manifolds: To mount the 3/2-way NC valve, In Single or Multiples. E2 Series: Plug type Manifolds – No.of valves mountable - 4, 6 and 9 Valves Connector type Manifolds - No of valves mountable – 1, 2, 3 and 5 Valves Connector assembly recommended for connecting the two Manifolds. Cover plate assembly recommended for plugging the unutilized position. E4 & E5 Series: Plug type Manifolds – No.of valves mountable - 1, 2, 4, 6 and 8 Valves Cover plate assembly recommended for plugging the unutilized position. DS2 Series: DS2 Series spool type valve, for mounting 3/2, 5/2 and 5/3 in Multiples, separate Manifolds are recommended. Block type Manifolds – 2,4,6 and 8 valves – 3/2. Block type Manifolds – 2,4,6 and 8 valves – 5/2 and 5/3. Plug type Manifolds – 2,4,6 and 8 valves – 3/2, 5/2 and 5/3. Cover plate assembly recommended for plugging the unutilized position. Dummy plug recommended for plugging the unutilized position in plug type manifold. These types of Manifolds are available for port size G1/8, G1/4 and G1/2 size valves. EF Series: EF Series poppet type valve, for mounting 3/2 and 5/2 in Multiples, separate Manifolds are recommended. Block type Manifolds – 2,4,6 and 8 valves – 3/2. Block type Manifolds – 2,4,6 and 8 valves – 5/2. Plug type Manifolds – 2,4,6 and 8 valves – 3/2 and 5/2. Cover plate assembly recommended for plugging the unutilized position. Dummy plug recommended for plugging the unutilized position in plug type manifold. These types of Manifolds are available for port G1/4 size valves. DS5 Series: DS5 Series spool type valve, for mounting 5/2 separate in Multiples, Manifolds are recommended. Block type Manifolds – 2,4,6 and 8 valves – 5/2. Cover plate assembly recommended for plugging the unutilized position. These types of Manifolds are available for port G1/4 size valves. DS4 Series: Mounting interface for ISO - Size 1: This Sub base is recommended for mounting single valve. This sub base is as per ISO 5599-1. The drilling pattern can be machined on the surface of a machine or base for mounting the valve in single or multiple. 5/2-way valve can be mounted on this sub base. Mounting interface for ISO - Size 3: This Sub base is recommended for mounting single valve. This sub base is as per ISO 5599-1. The drilling pattern can be machined on the surface of a machine or base for mounting the valve in single or multiple. 5/2-way and 5/3 way valve can be mounted on this sub base.
View Details
E2 Valve Manifold-Gang Mounting Type - 3/2
Janatics pulse valve is a high flow valve with fast opening and closing. Can be used in dirty and dusty environment. It is 2/2-way normal closed pilot solenoid operated valve. The main valve with diaphragm for fast response and the pilot solenoid valve opens the passage rapidly and vents the air chambers. It is used in dust collection system to clean filters. Available ports: G3/4, G1, G 1-1/2 Coil width: 32mm Coil Voltage: AC- 230V, DC- 24V Working Pressure Range: 0.5 to 8 bar
View Details
PV-2/2 Single Solenoid Pilot Operated Spring Return
